PCB Drilling & Routing Machine

PCB Drilling

Features:

• Gantry type strong machine.
• Programming in g code standard. Other modes optional.
• Support to open OrCad & Protel software file for drilling and routing.
• Plt,Basic Dxf file support for PCB Routing.
• Programming facility from existing job.
• Very good strength for routing.
• Auto vacuum suction for chip removal.
• Full proof clamping arrangement.
• Step and repeat for multi pasting .

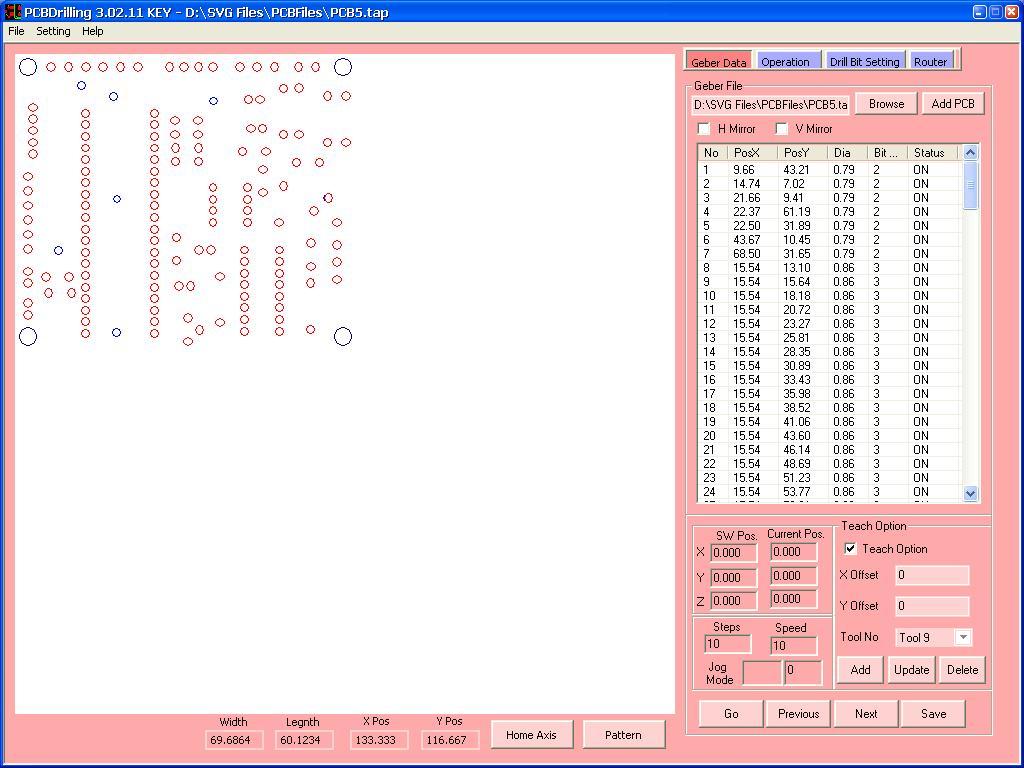

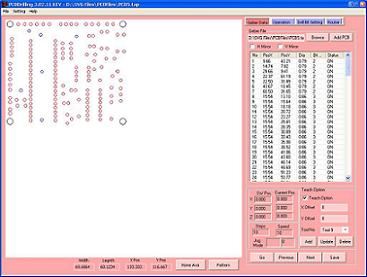

• Simulation facility for PCB drilling & Routing.
• Drill sequence designer/ editor .
• Pattern edit facility.
• Developed software as per indian market requirement
• Run on Very High Speed FPGA based Motion Control Card and other controller
• User Friendly

Highlights:

• High efficiency: It merely needs a few minutes to make a piece of PCB.
• Accuracy: The min error of numerical control drill hole less than 1mil (0.025mm).
• Automatism and convenience: Simple software hardware installation, operate the manufacturing process by striking the function keys of operation system.
