Laser Solar Cell Scribing

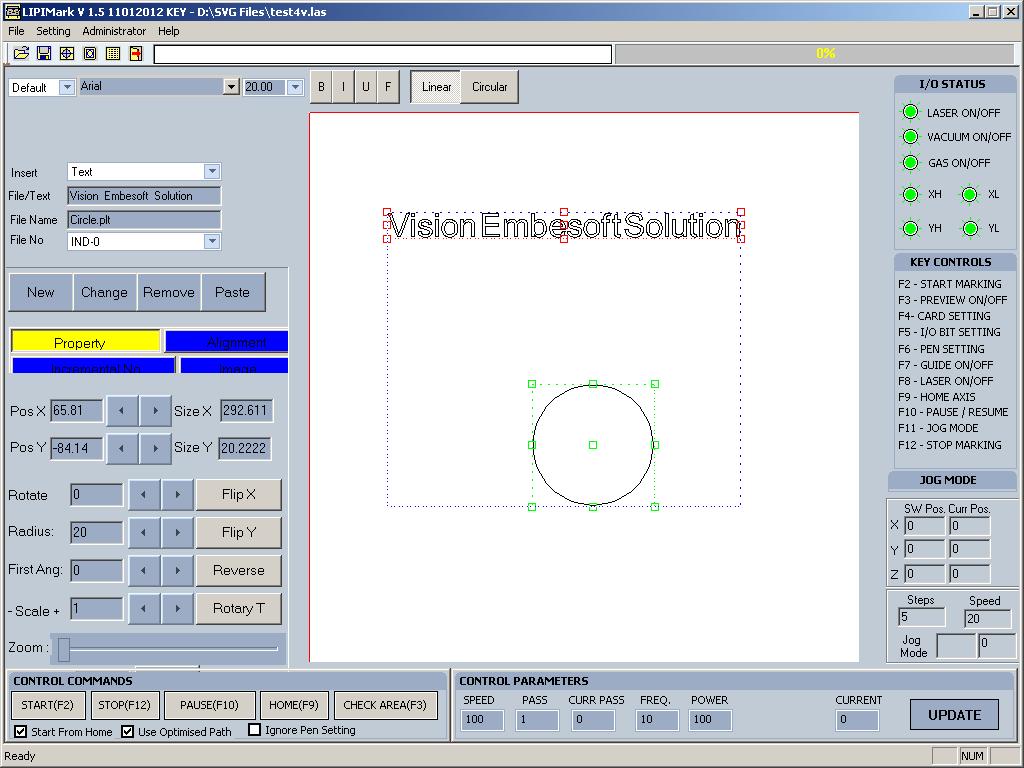

LIPIMark



Features:

• Developed software as per indian market requirement
• Supoprt for Multi Object (Text,PLT, Basic DXF, BMP, JPG…)
• Linear and Circular Text with Outline and Filling
• Plt,Bmp,Jpg, Basic Dxf file support
• Rotary and Indexing Marking
• Support to intergar with PLC and PC
• Compensated F-Theta effect
• Run on Very High Speed FPGA based Motion Control Card
• User Friendly



Highlights:

• Installed for ND:YAG(Lamp Pump and Diode Pump) and Fiber (IPG and SPI) Lasers



Technical Specification



Laser Type	Fiber Laser
Laser	Fiber Laser,Diode Pump, Nd:YAG Laser
Average /CW Output Power	20 W
Pulse Repetition Rate	20-80 KHz
Wavelength	1062 ± 3 nm
Laser Class	IV
Guide Laser/Red Aiming Beam	Yes
Ambient Temperature	25 °C
Power Consumption	< 1 kW
Electrical Connection (Optional)	230v/50Hz - 115V/60Hz
Axis Travel (Optional)	200 x 200 mm /250 x 250 mm
Repeatability	50Micron
Resolution	1micron
